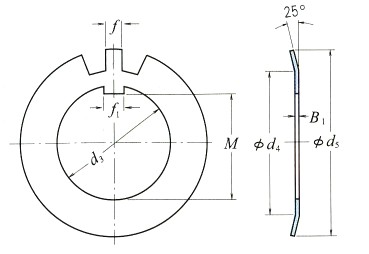

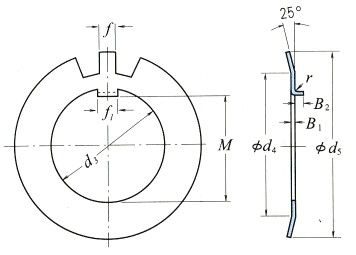

Drawing
Parameter
| Designation |
| Bent-Tab | AW03 |
| Straight-Tab | AW03X |
| Standard size |
| d 3 | 17 |
| M | 15.5 |
| f 1 | 4 |
| B 1 | 1 |
| f | 4 |
| d 4 | 24 |
| d 5 | 32 |
| Bent-Tab r | 1 |
| Bent-Tab B 2 | 2.5 |
| Mass(kg)(reference)Per 100 pcs |
| Mass(kg)(reference)Per 100 pcs | 0.315 |
| Adapter sleeve OD COD e |
| Adapter Sleeve Bore Dia.Numbers | - |
| Shaft diameter(for shaft) |
| Shaft diameter(for shaft) | 17 |
Details
Chenxin International Industry Co., Ltdspecializes in selling NSK-AW03X-Washer，Relevant information of NSK-AW03X-Washer includes： Designation: AW03X d: D: B: Brand:NSK Type:Washer ，Want to know more about NSK-AW03X-Washer You can consult online or call the hotline, we will provide you with detailed service.
NSK-AW03X-Washer is widely used.NSK-AW03X-Washer is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of NSK-AW03X-Washer sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
